PRODUCT

PRODUCT

Meet our products

ABS 글라스플로어의 혁신적이고 유니크한 제품을 만나보세요

Product type

스포츠플로어 / Full LED플로어 / 스페셜프로젝트

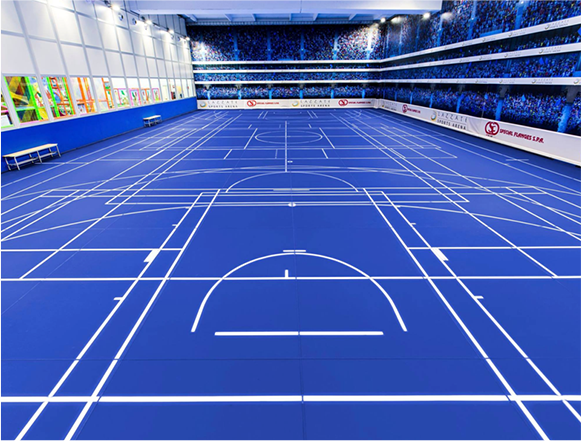

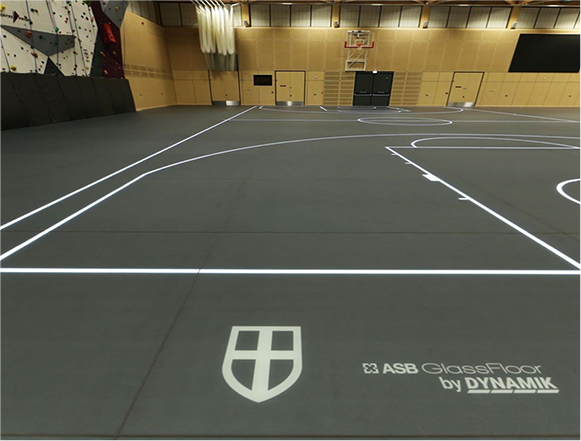

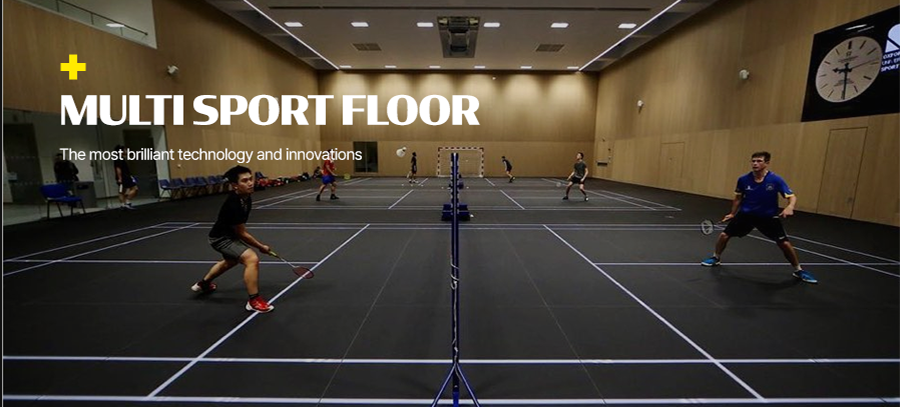

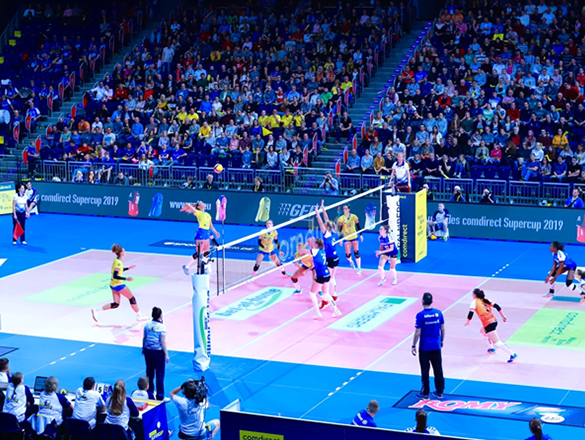

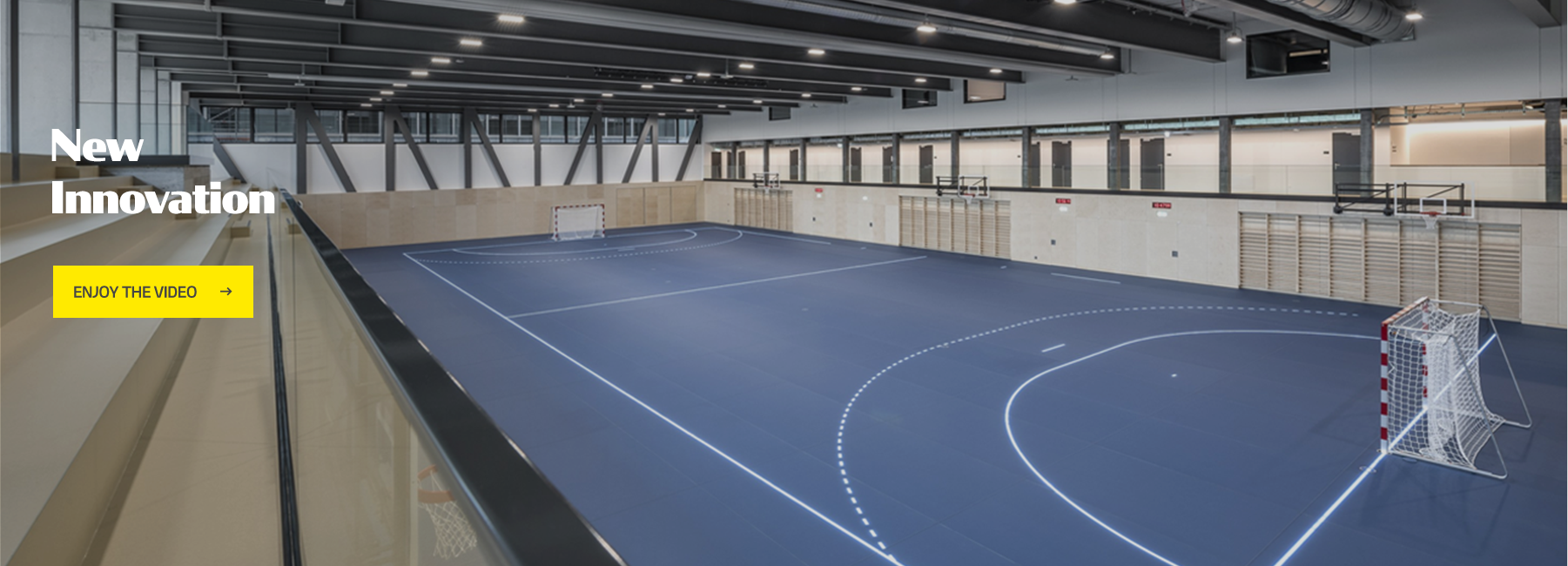

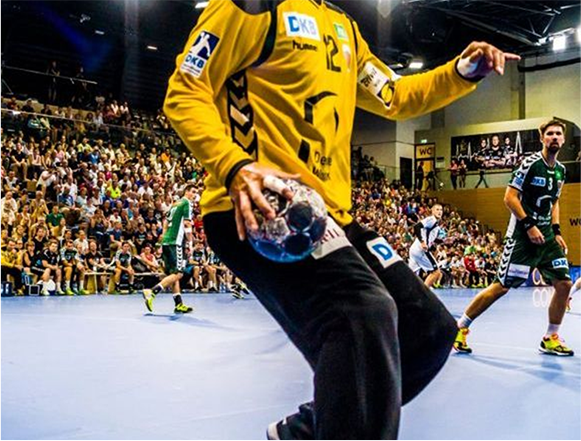

MultiSportFloor

Here comes the new floor

최상의 스포츠플로어 성능과 최적의 편의성을 갖춘 시스템

  • ✚Laminated VSG SECURIT®Glass
  • ✚스포츠 종목별 LED line 시스템
  • ✚터치스크린 컨트롤 시스템
  • ✚3D설계 하부구조 시스템
  • ✚커스터마이징 컬러 시스템
  • ✚시험성적서 및 인증서 보유
  • ✚MAX. Load Bearing : 500kg – 2000kg / 1㎡

Act the Evolution

The numbers

Performance
Court equipment
Structural Build Up
Warranty
Shock absorbtion
ø 55.6%. This meets DIN V 18032-2:2001 (min 40%, max 60%), also tested according to EN 14904
Vertical deformation
ø 3.9mm. This meets EN 14904:2006 (min 2.3mm, max 5.0mm )
Behaviour under rolling load
1500N, No damage. This meets EN 14904:2006
Ball Reflection
ø 93%. min. This meets EN 14904:2006 (min 90%)
Sliding Characteristics
ø 0.57 This meets EN 14904:2006 (min0.52, max0.57)
Area deflection
ø 65. This meets EN 14904:2006 (min 25 max 75)

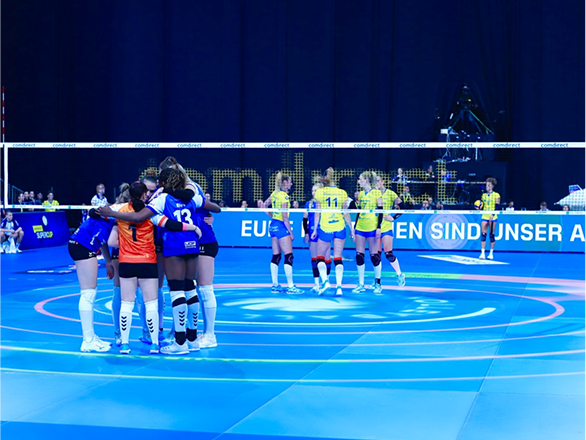

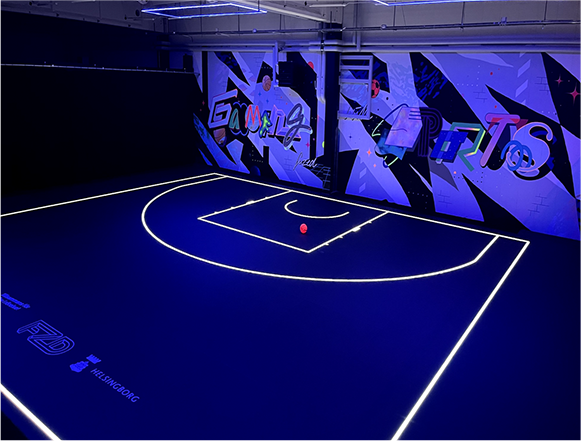

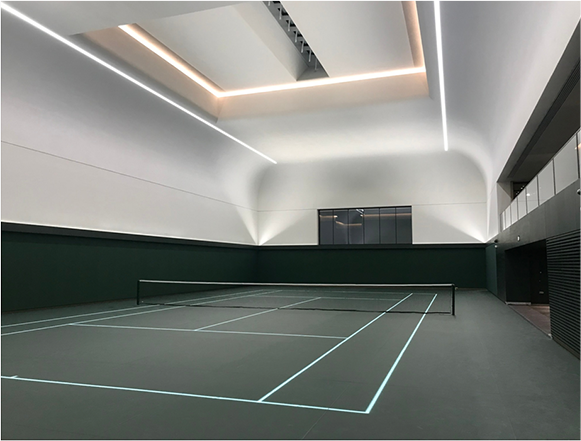

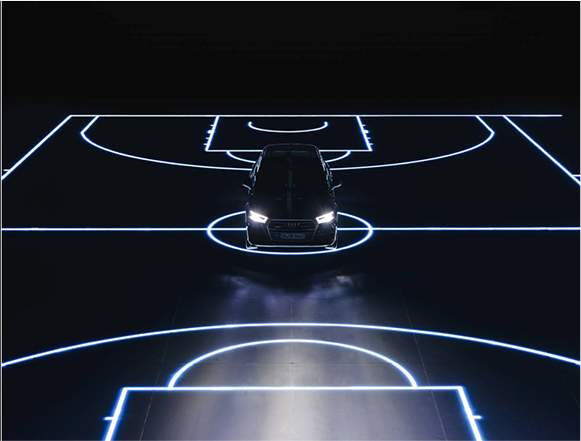

LED lines
LED marking lines in engineered light channels. Available in mono-color or as multi color LEDs.

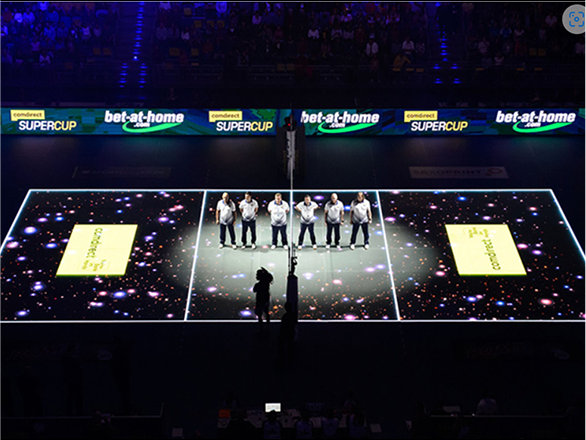

LED screens
LED screens under the floor can be provided with a 400 d/mÇ or 1600 d/mÇ as standard or in custom made resolutions.
Sleeves
Sleeves for sports equipment like Badminton or Volleyball netting or gymnastics equipment can be supplied but need to be
customized before order.
Aluminium double swing beam
sub-structure
The Substructure consists of a grid of double swing beams on pillars. The grid has hard rubber
contact bearings where the glass connects with the elastic sub-structure.
Glass
Laminated VSG SECURIT ® glass panels made of two tempered security glass parts separated by 1.52mm thick PVB- foil.
Glass surface
Special etching on the upper surface of the glass panels to prevent light reflection. Burned in ceramic dots for slip resistance.
The colour of the floor is determined by a foil applied to the back of the glass And can be changed.
Joints
Filled with special PVC filler compatible with tempered security glass VSG.
For outdoor use, 3mm open joints recommended.
Glass
10 years
Electronic Parts
2 years

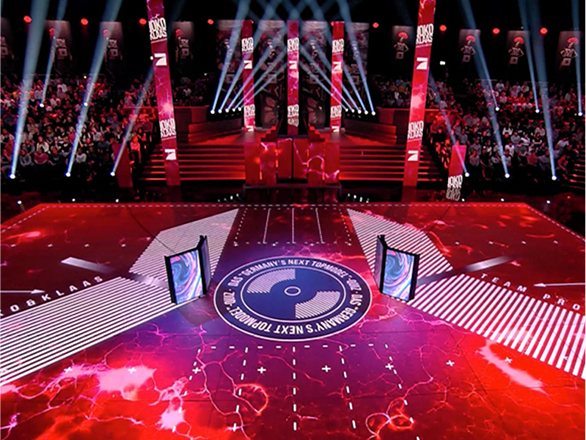

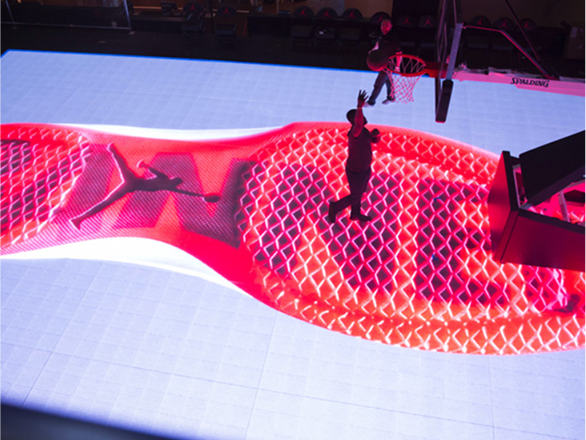

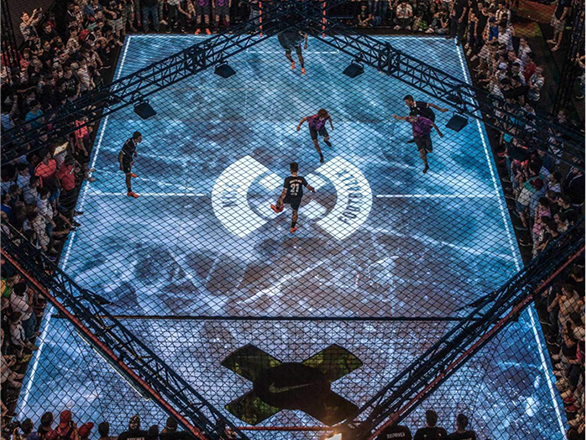

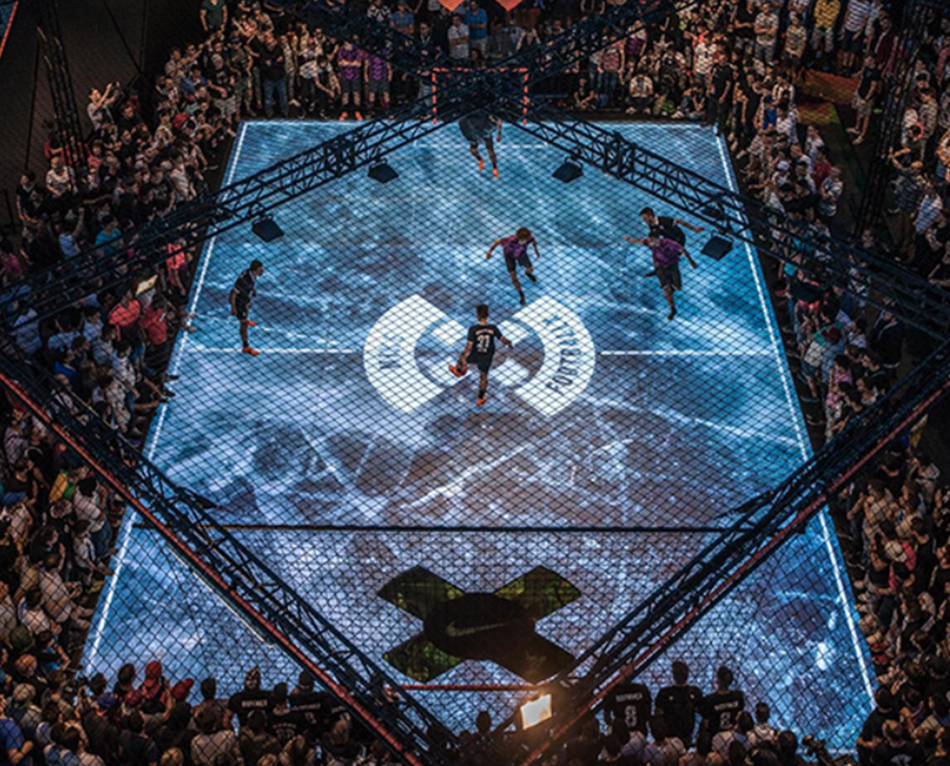

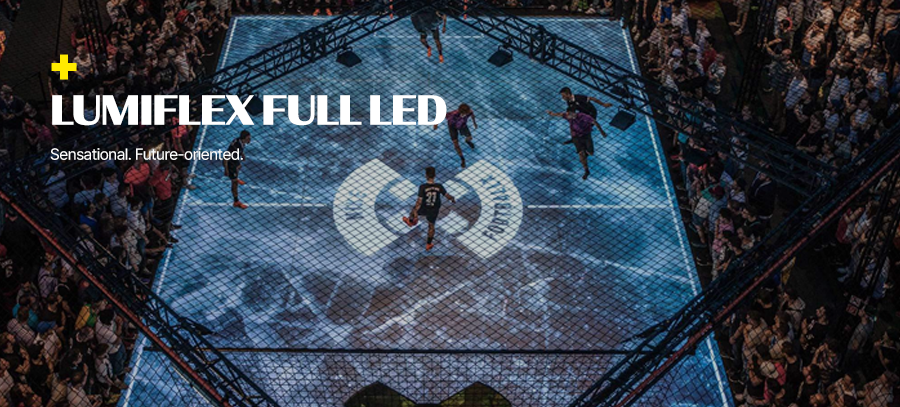

LUMIFLEX

The World
BEST, Briefly
Gorgeous and
Conquere the World.

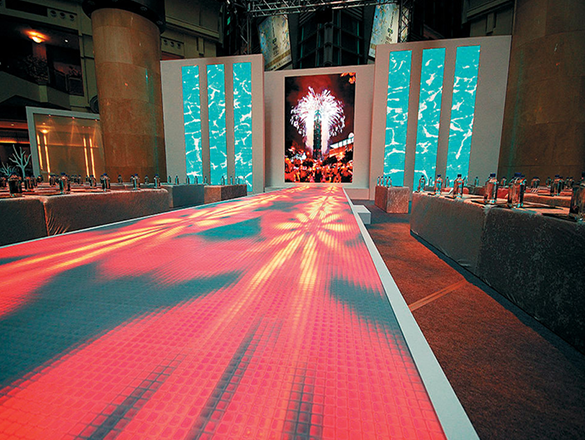

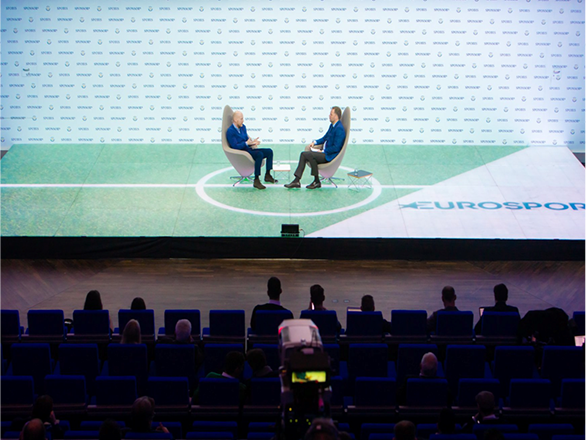

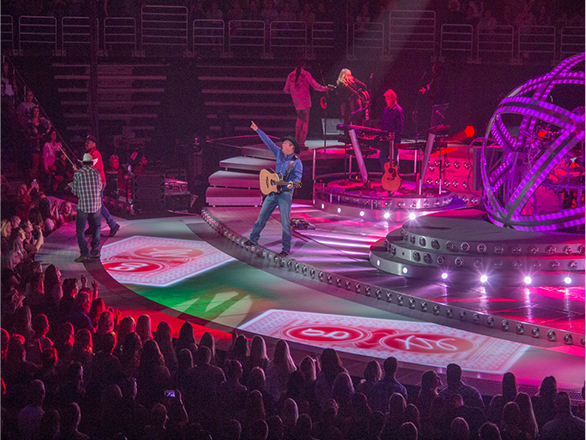

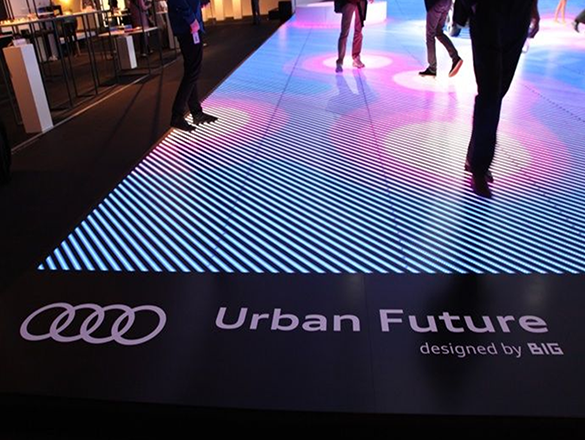

  • ✚글라스플로어와 Full LED 시스템을 접목하여 다양성을 갖춘 플로어 시스템
    2중접합안전강화유리 플로어와 FULL LED 스크린과 스페셜하고
    유니크한 컴비네이션
  • ✚고해상도 Pixel 플로어 전용
  • ✚유선 / 무선 영상 출력제어
  • ✚인터렉티브 / 웨어러블 시스템
  • ✚모듈타입 이동 / 매립 설치 시스템
  • ✚인도어 / 아웃도어 전용
  • ✚Max. Load Bearing : 500kg - 2000kg / 1㎡

The numbers

Specification
Electronic Component
Warranty
ASB Glass
Laminated two layer safety glass panels with PVB-foil
ASB Glass Surface
Laminated two layer safety glass panels with PVB-foil
Sub-structure
Special etching on the upper surface / Burned in ceramic dots
Sport Performance
Meets and exceeds EN 14904:2006 / FIBA and IHF certified
Pixel Pitch
pp 3.9mm / pp 4.8mm
Pixel Pitch
RGB 3in1 SMD1921
Pixel Pitch
500mm x 500mm x 88mm
Refresh Rate
4,500nit
Source Compatibility
synchronous DVI / VGA / SDI / HDMI plug and play
Operating Temperature
-20℃∼ 50℃
Operating Humidity
10 – 90% RH
Connection
Power: Neutrik (IP65), Data: etherCON (IP65)
Input Power
AC100-240V, 50∼60Hz
Lifetime
min. 100,000 Hours
Build-up height
min. 160 mm
Glass
10 years
Electronic Parts
2 years

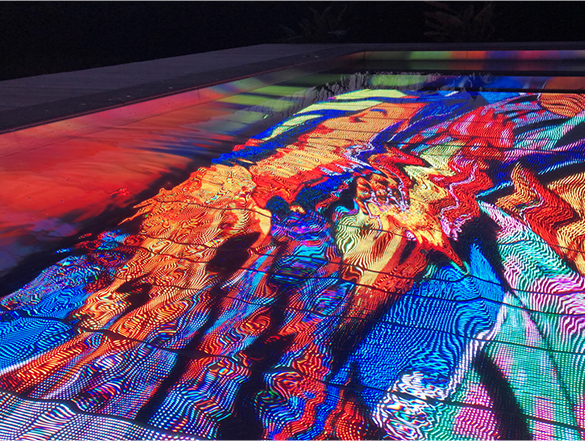

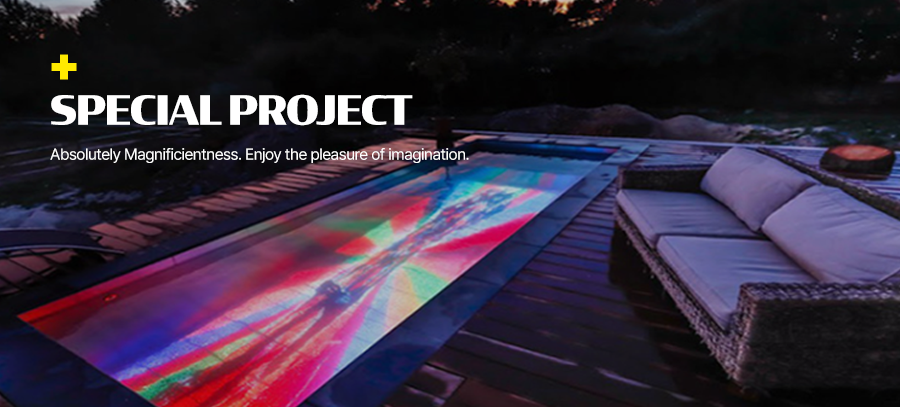

SPECIAL PROJECT

The World

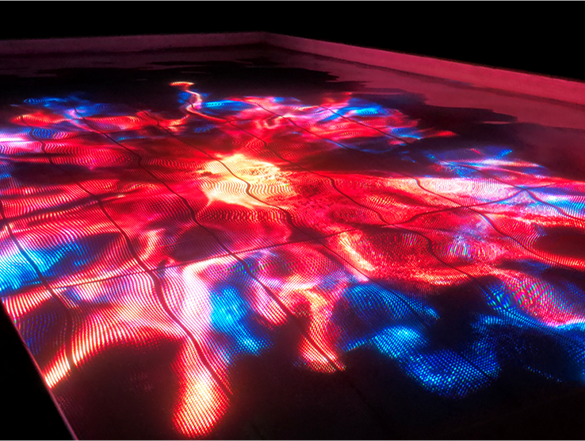

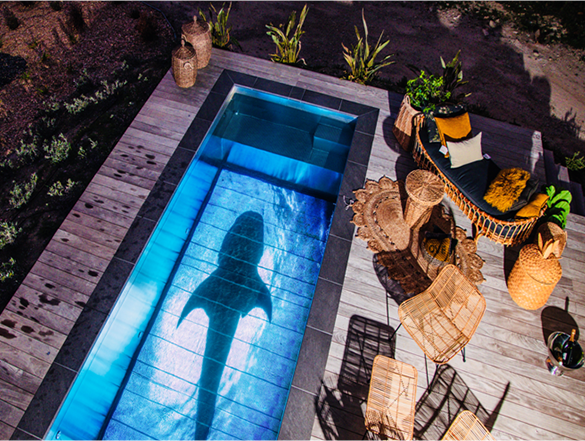

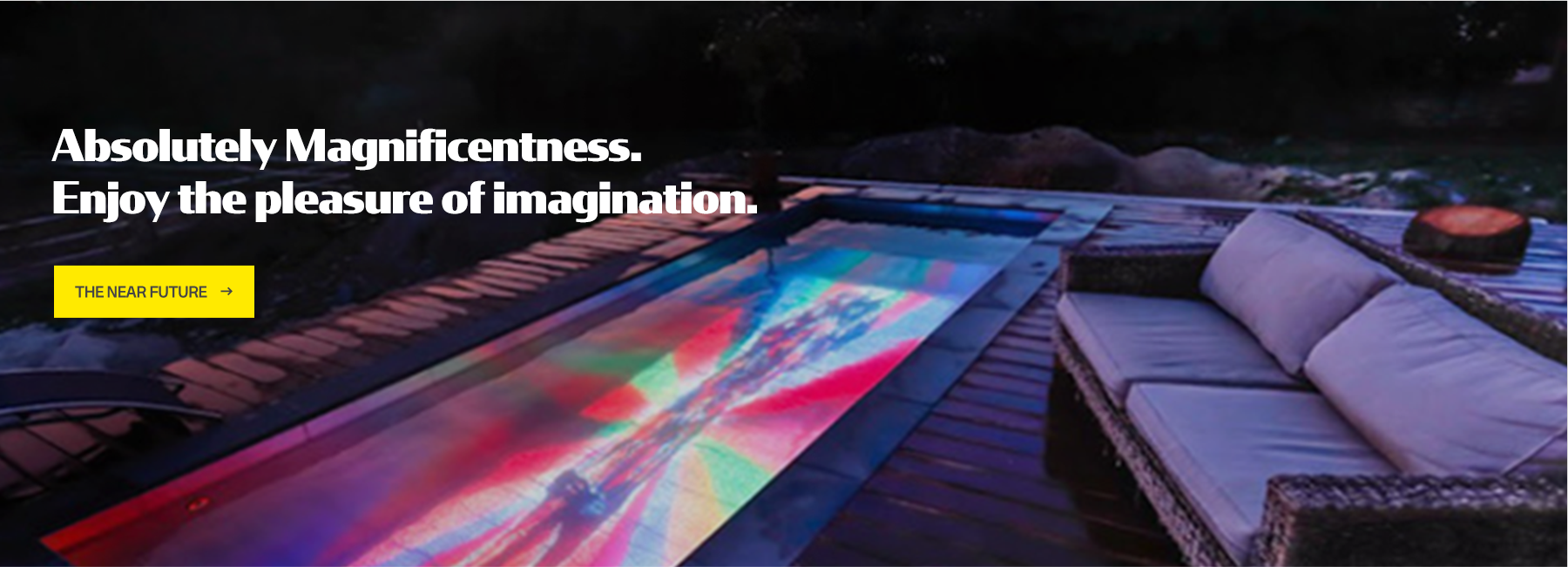

FIRST, Swimming pool
with LEDS and
Spectacular Interiors.

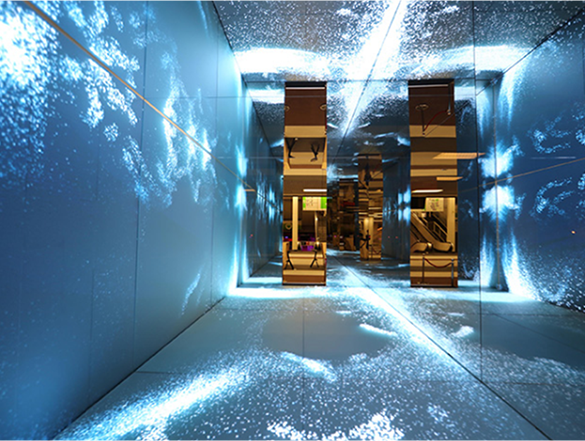

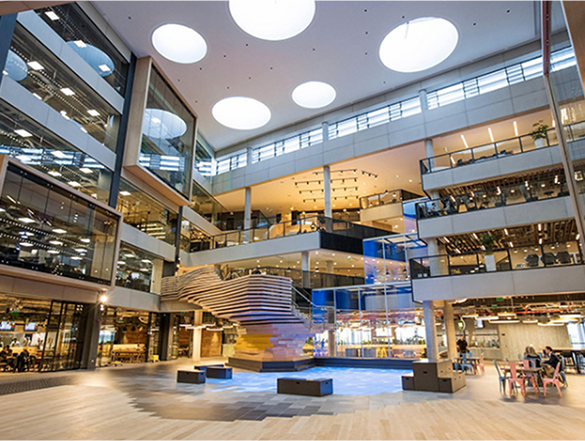

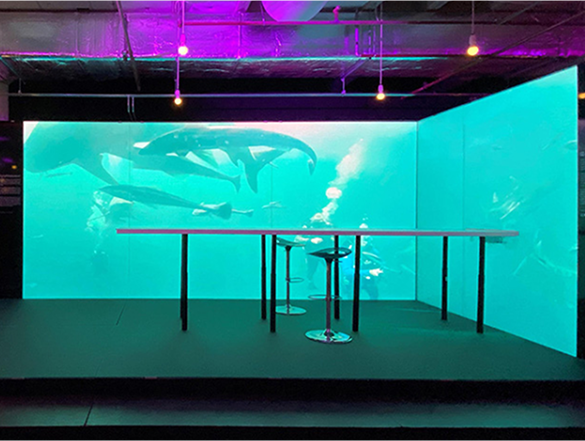

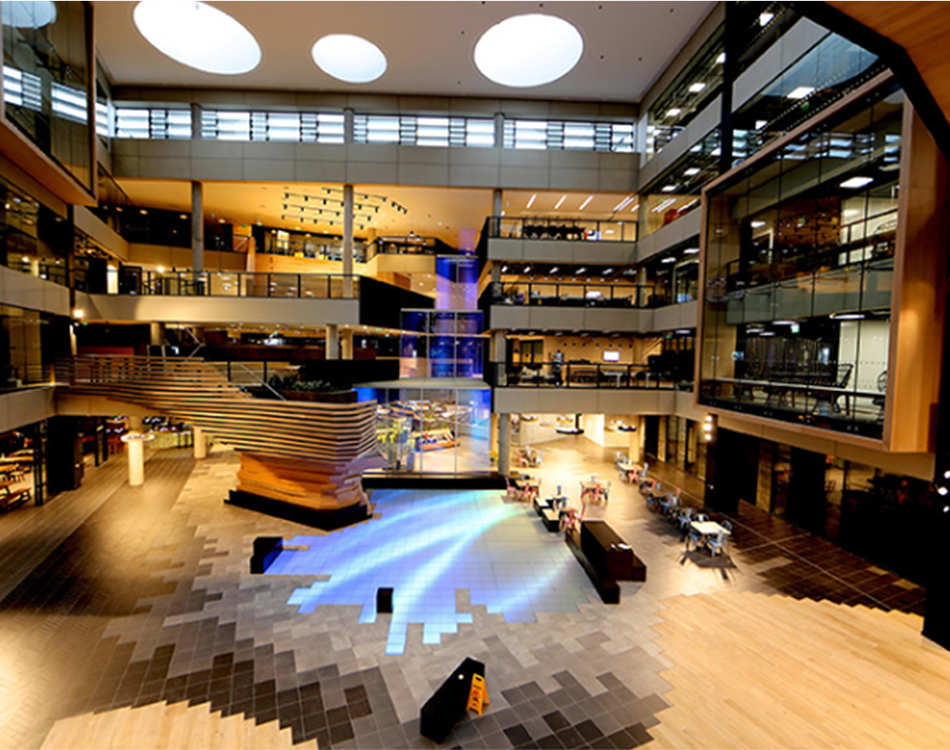

Full LED 글라스플로어 시스템은 수영장, 로비, 전시회, 구조물 등 다양한 인테리어에 획기적이고 독창적인 기술력으로 적용 가능한 시스템
To Infinity and Beyond.

  • ✚FULL LED 글라스플로어 시스템
  • ✚고해상도 Pixel 플로어 전용
  • ✚유선 / 무선 영상 출력제어
  • ✚pp 3.9 / pp 6.9
  • ✚모듈타입 매립형 설치 시스템
  • ✚인도어 / 아웃도어 / 수영장 전용
  • ✚100% 방수 / 방진
  • ✚Max. Load Bearing : 500kg - 2000kg / 1㎡(제곱미터)

The numbers

Specification
Electronic Component
Warranty
ASB Glass
Laminated two layer safety glass panels with PVB-foil
ASB Glass Surface
Special etching on the upper surface / Burned in ceramic dots
Sub-structure
A rigid aluminum sub-structure
Sport Performance
Meets and exceeds EN 14904:2006 / FIBA and IHF certified
Pixel Pitch
pp 3.9mm / pp 4.8mm
LED Type
RGB 3in1 SMD1921
LED Panel Size
500mm x 500mm x 88mm
Refresh Rate
4,500nit
Source Compatibility
synchronous DVI / VGA / SDI / HDMI plug and play
Operating Temperature
-20℃∼ 50℃
Operating Humidity
10 – 90% RH
Connection
Power: Neutrik (IP65), Data: etherCON (IP65)
Input Power
AC100-240V, 50∼60Hz
Lifetime
min. 100,000 Hours
Build-up height
min. 160 mm
Glass
10 years
Electronic Parts
2 years
